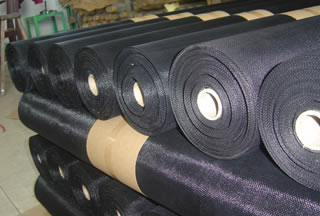

Black wire cloth is made of mild steel wire, in plain weave or twilled Dutch weave, also known as low carbon steel wire cloth, mild steel wire mesh. This kind of wire mesh products are mainly used in filtration of rubber industry, plastic industry and grain.


Mesh/Inch |
Opening (mm) |
Wire Diameter( mm) |
Reference weight(kg/sq.meter) |
10mesh x 10mesh |
1.94 |
0.6 |
1.8 |
10mesh x 10mesh |
1.98 |
0.56 |
1.56 |
12mesh x 12mesh |
1.52 |
0.6 |
2.16 |
12mesh x 12mesh |
1.56 |
0.56 |
1.88 |
18mesh x 18mesh |
0.96 |
0.45 |
1.82 |
18mesh x 18mesh |
1.0 |
0.41 |
1.52 |
18mesh x 18mesh |
1.04 |
0.37 |
1.23 |
18mesh x 18mesh |
1.06 |
0.35 |
1.1 |
20mesh x 20mesh |
0.86 |
0.41 |
1.68 |
20mesh x 20mesh |
0.9 |
0.37 |
1.38 |
22mesh x 22mesh |
0.74 |
0.35 |
1.33 |
22mesh x 22mesh |
0.79 |
0.30 |
0.99 |
24mesh x 24mesh |
0.7 |
0.35 |
1.5 |
26mesh x 26mesh |
0.63 |
0.35 |
1.66 |
28mesh x 28mesh |
0.6 |
0.31 |
1.36 |
30mesh x 30mesh |
0.64 |
0.31 |
1.46 |
32mesh x 32mesh |
0.5 |
0.29 |
1.36 |
34mesh x 34mesh |
0.47 |
0.28 |
1.3 |
36mesh x 36mesh |
0.47 |
0.28 |
1.3 |
38mesh x 38mesh |
0.41 |
0.26 |
1.1 |
40mesh x 40mesh |
0.39 |
0.25 |
1.2 |
40mesh x 40mesh |
0.41 |
0.23 |
1.06 |
40mesh x 40mesh |
0.43 |
0.21 |
0.88 |
42mesh x 42mesh |
0.365 |
0.24 |
1.1 |
44mesh x 44mesh |
0.347 |
0.23 |
1.0 |
46mesh x 46mesh |
0.332 |
0.22 |
1.0 |
48mesh x 48mesh |
0.319 |
0.20 |
0.96 |
50mesh x 50mesh |
0.318 |
0.19 |
0.91 |
50mesh x 50mesh |
0.338 |
0.17 |
0.72 |
56mesh x 56mesh |
0.248 |
0.17 |
0.81 |
60mesh x 60mesh |
0.27 |
0.15 |
0.68 |
|
